Bottle-top dispensers
Bottle-top dispensers

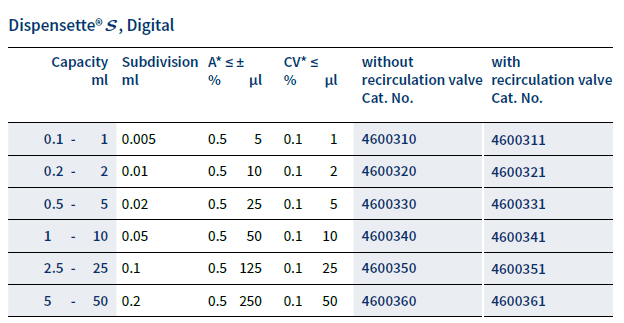

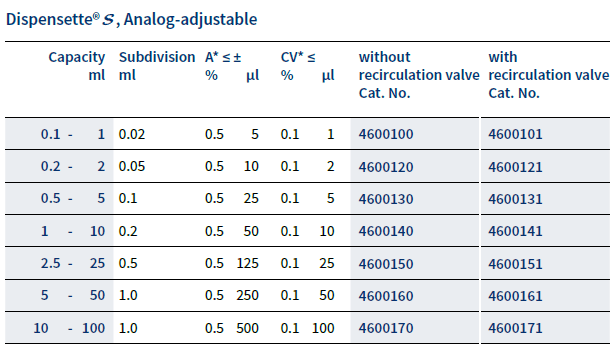

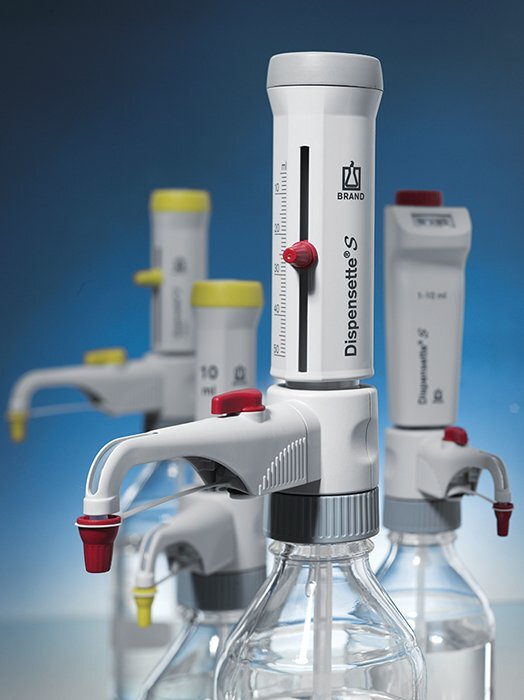

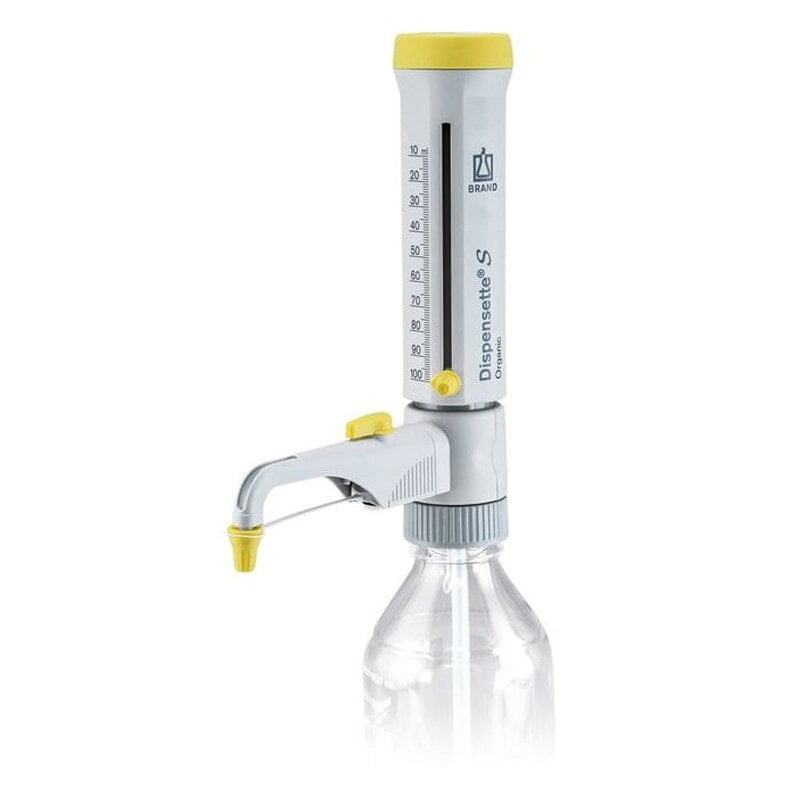

Dispensette® S (red color-code): Ideal for dispensing aggressive reagents, including concentrated bases and acids such as H3PO4, H2SO4 (except e.g., HCl, HNO3 und HF), saline solutions, as well as many organic solvents.
Digital design: Especially easy to read digital display. The selected dosed volume can be adjusted precisely and is easy to reproduce. Easy calibration technology for adjustment in seconds without tools. Automatic designation if factory default changed.
Limitations of use:
Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Vapor pressure up to max. 600 mbar. Aspirate slowly above 300 mbar, in order to prevent the liquid from boiling
Kinematic viscosity up to 500 mm² /s (dynamic viscosity [mPas] = kinematic viscosity [mm² /s] x density [g/cm³)
Density up to 2.2 g/cm³

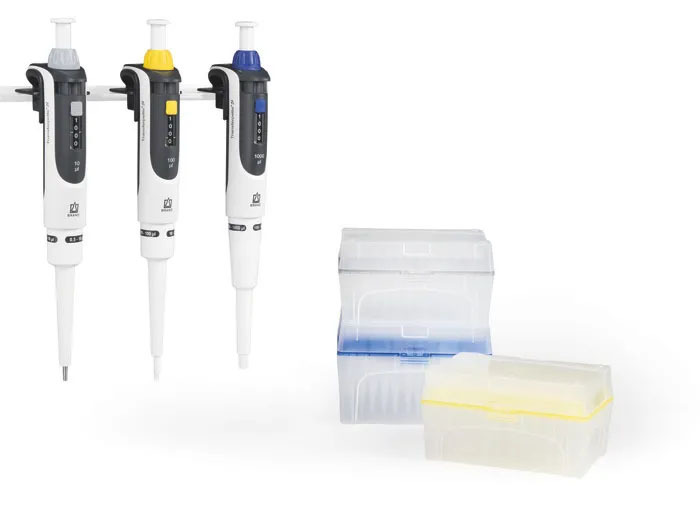

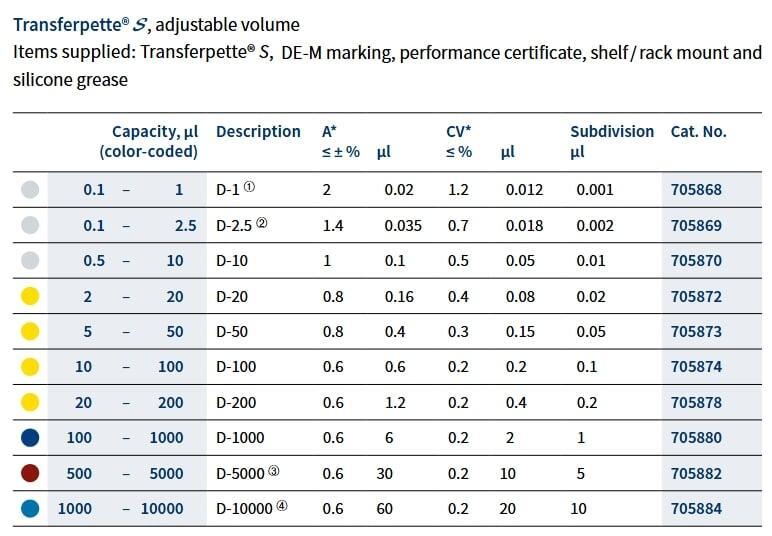

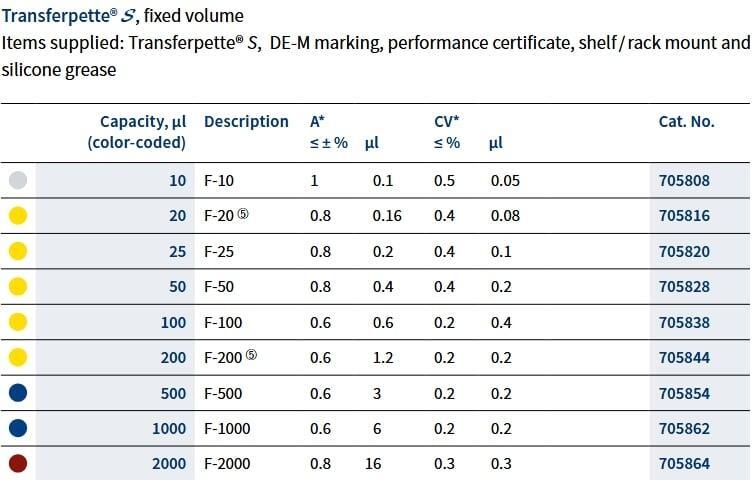

Single-channel Pipettes,Manual
Multi-channel Pipettes,Manual

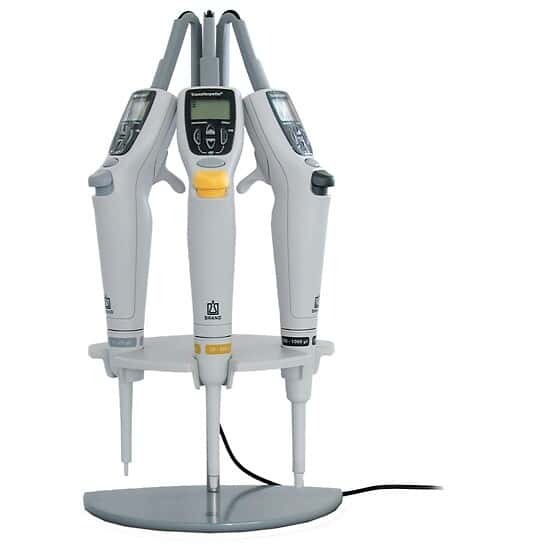

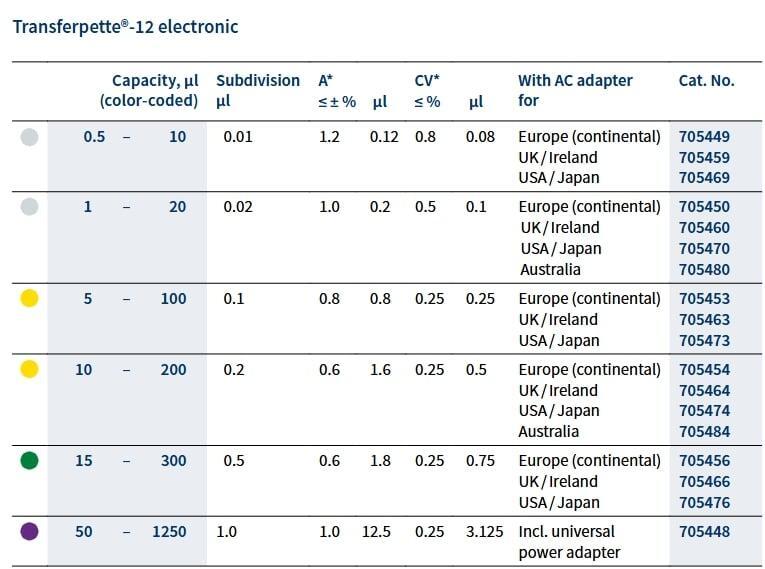

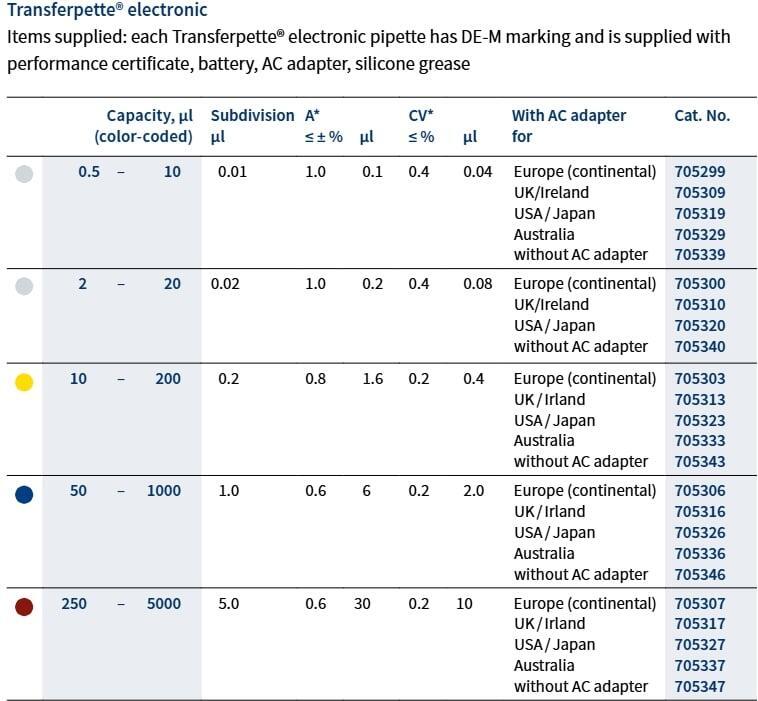

Single-channel Pipettes, Electronic

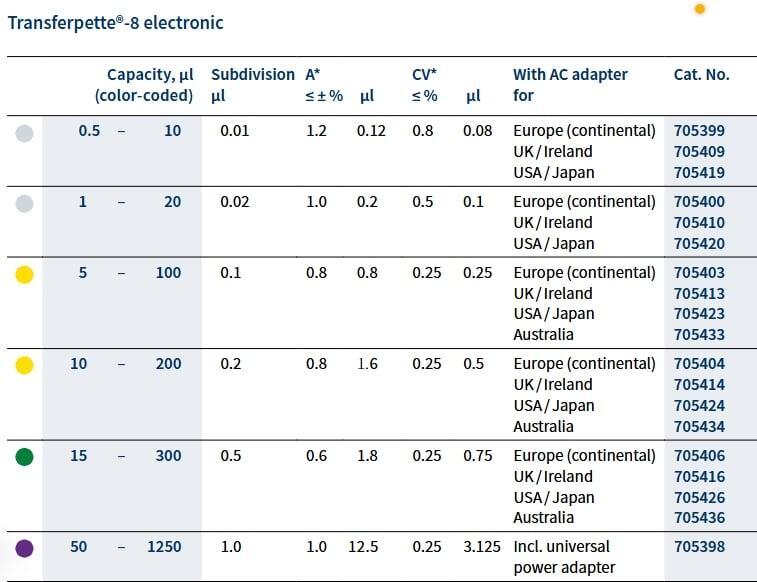

Multi-channel Pipettes, Electronic
Pipette Controllers
Pipette Controllers
Main Features:

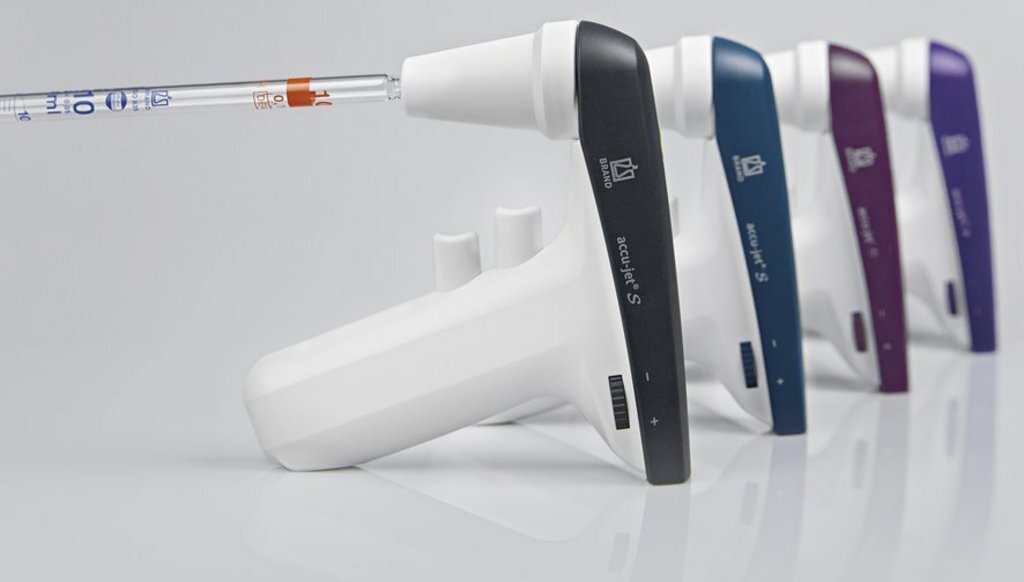

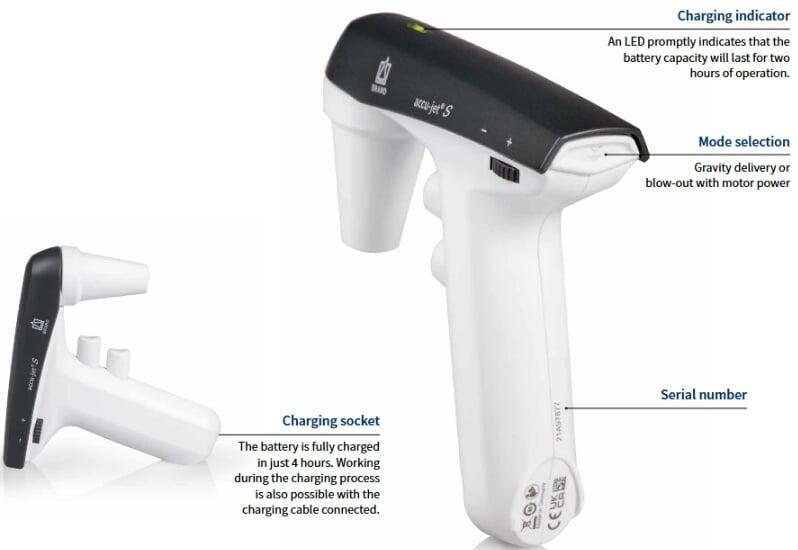

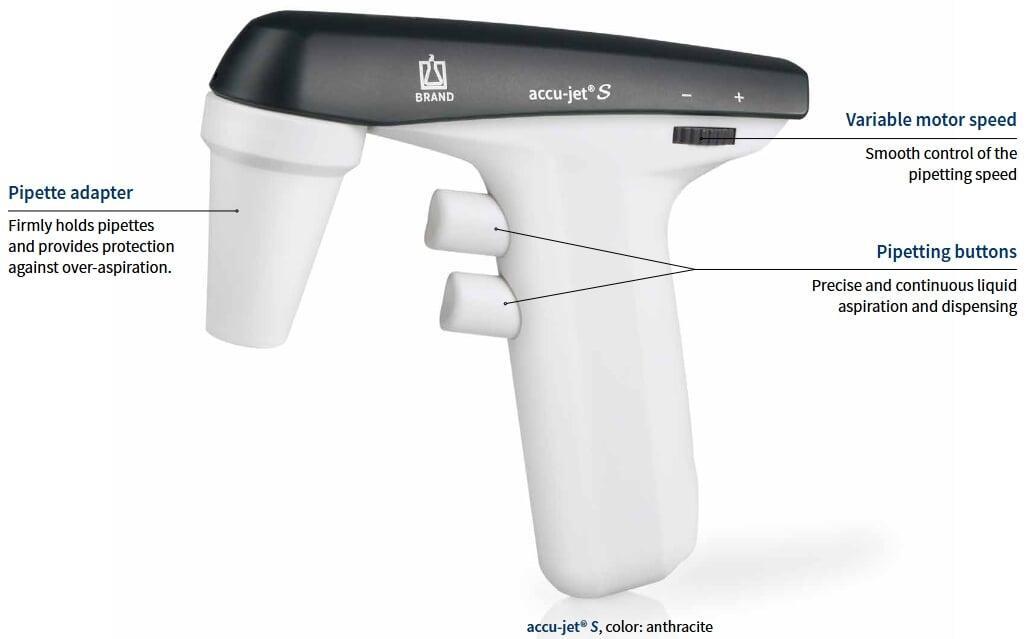

The accu-jet® S offers single-handed speed control, ergonomic handling, and compatibility with both glass and plastic pipettes ranging from 0.1 to 200 ml. It supports gravity and powered blow-out dispensing for maximum flexibility and fills a 25 ml pipette in just 3 seconds.

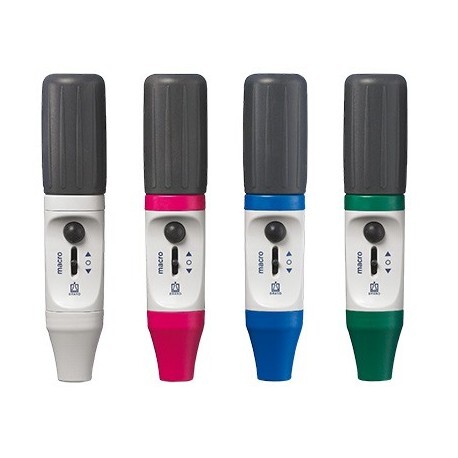

The macro pipette controller is known for being lightweight (125 g), handling volumes up to 200 ml, and is fully autoclavable for sterility. Its hydrophobic membrane filter protects against liquid ingress, and it is backed by a sturdy design for everyday lab work.
The micro-classic version is especially valued for its comfort and simple operation with an ergonomic shape. It is suitable for delicate applications such as in vitro fertilization (IVF).
Notable Advantages:
All models emphasize comfortable, fatigue-free pipetting for prolonged use.
The accu-jet® S and macro models have features to prevent liquid contamination and instrument corrosion.
Intelligent battery management allows extended pipetting sessions, with some controllers operational while charging.
Common Applications:
Cell culture work, pharmaceutical and chemistry labs, and quality control settings benefit from Brand pipette controllers.
Their precision and reliability make them essential tools for accurate liquid transfers and sample preparations in demanding lab environments.

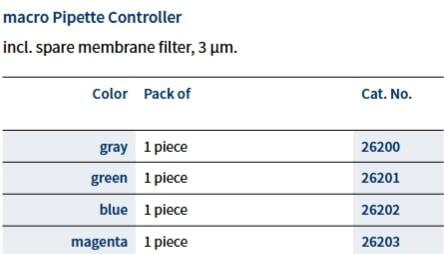

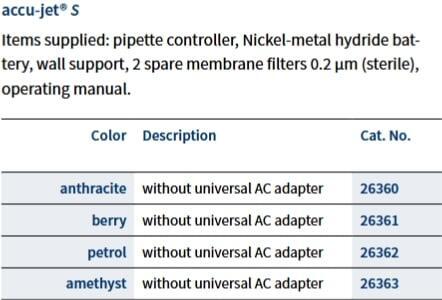

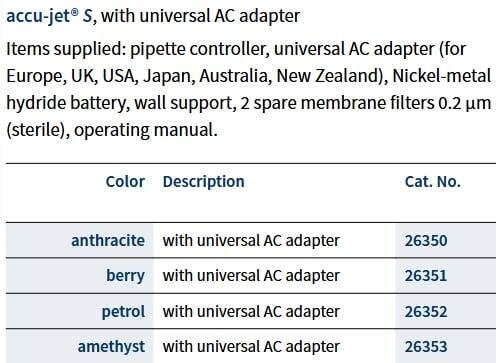

Details for Ordering the Macro Pipette Controller
Handystep
Handystep
- The brand "HandyStep" is associated with repetitive pipettes made by BRAND. The HandyStep pipettes come in different models such as the HandyStep® touch and HandyStep® S, designed for efficient, precise, and ergonomic repetitive dispensing of liquids.
- Key features of HandyStep pipettes include:
- Touchscreen operation with intuitive menu navigation (HandyStep® touch)
- Automatic tip ejection for contamination-free work
- Compatibility with BRAND PD-Tips and third-party tips
- Volume ranges from as low as 1.0 µL up to 50 mL depending on the model
- Suitable for applications in diagnostics, molecular biology, environmental analysis, and more
- Ergonomic design to reduce hand strain during long pipetting sessions

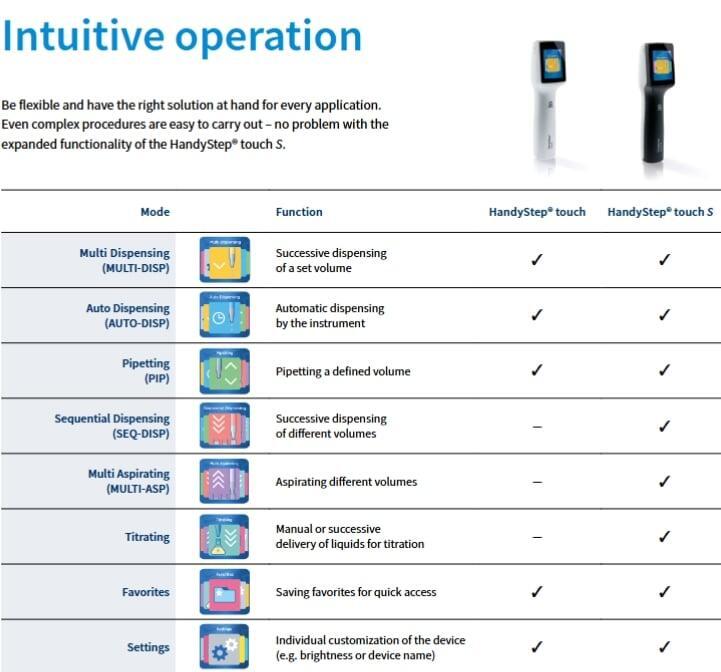

- Multiple dispensing modes such as multi-dispensing, auto-dispensing, sequential dispensing, and titration

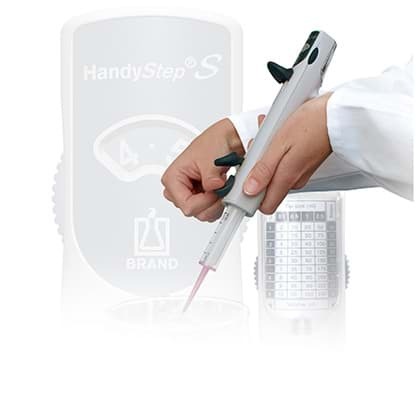

The HandyStep® S model works on the positive displacement principle, allowing it to handle liquids that are difficult to pipette, such as viscous, high-density, or volatile liquids. It is robust and lightweight with easy tip mounting and ejection.

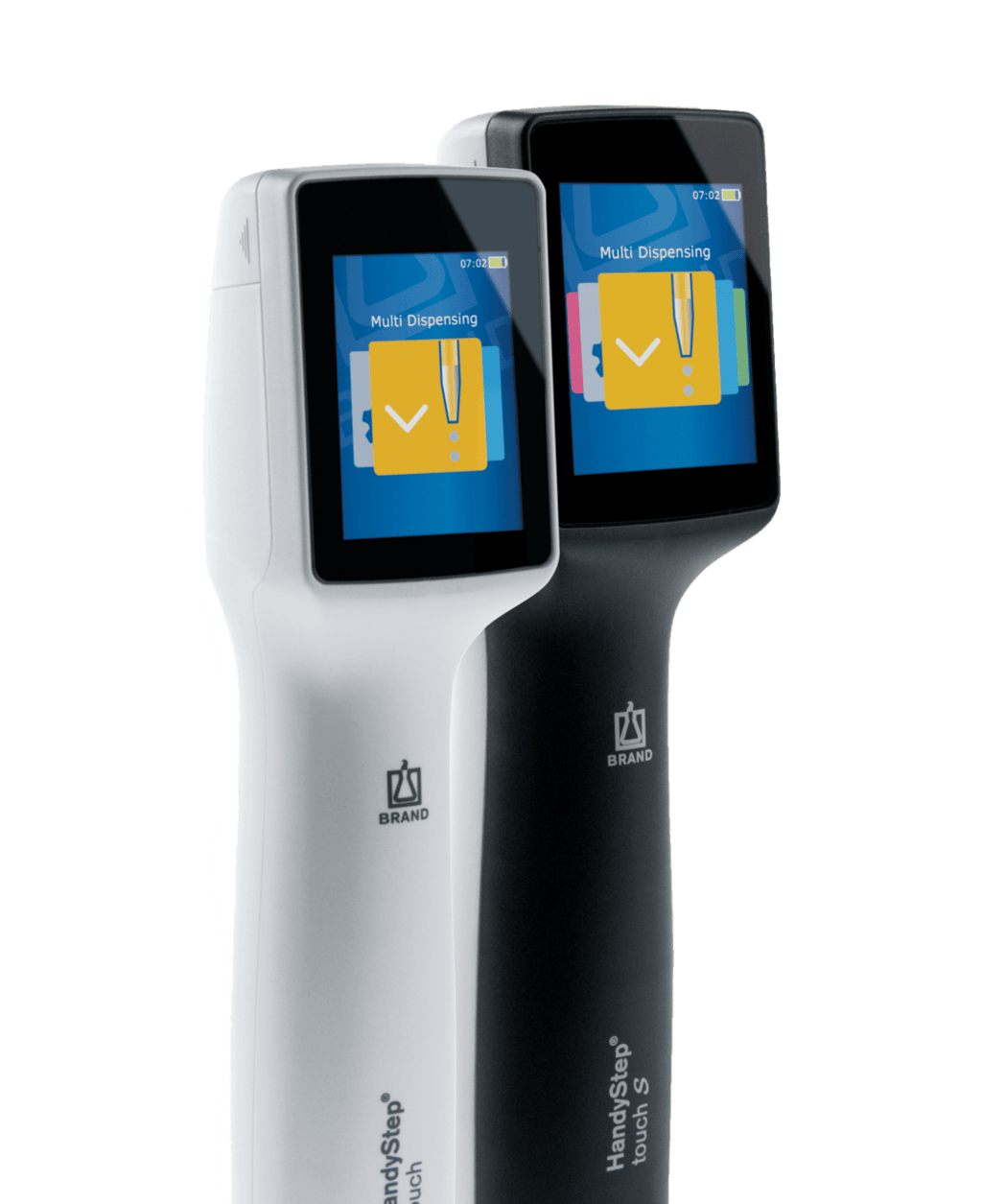

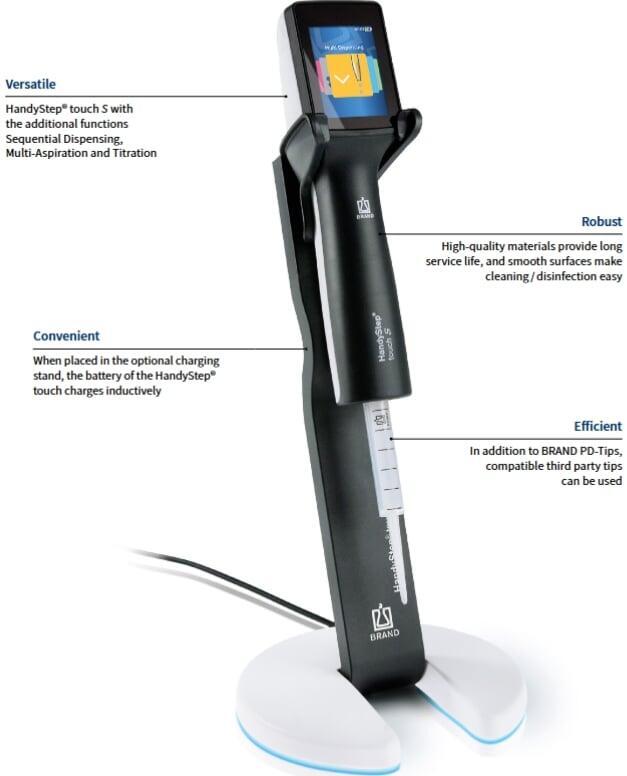

The HandyStep® touch is an advanced electronic model with a touchscreen, fast volume setting, calibration reminders, and the ability to enter volume either by swiping or typing, offering versatile and precise liquid handling.
Overall, HandyStep pipettes by BRAND are designed to provide reliable, precise, and comfortable repetitive pipetting for a variety of laboratory liquid handling tasks

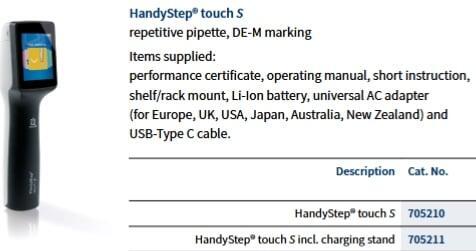

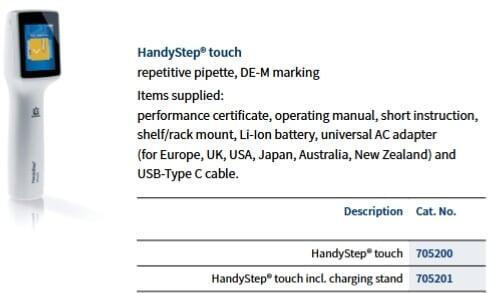

Details on how to order Handystep Touch

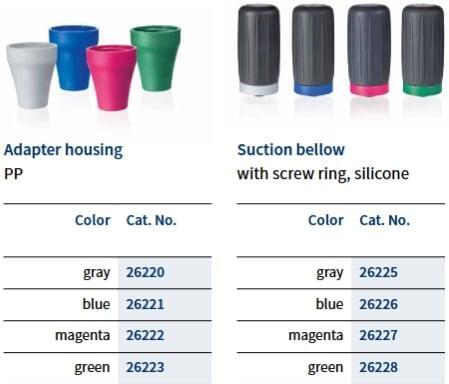

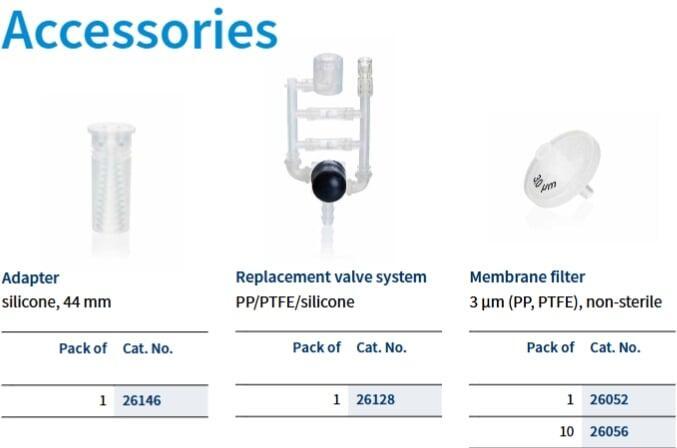

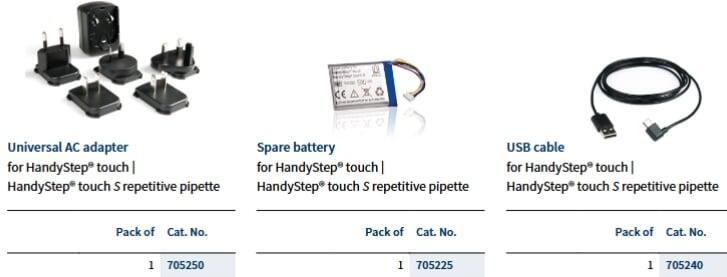

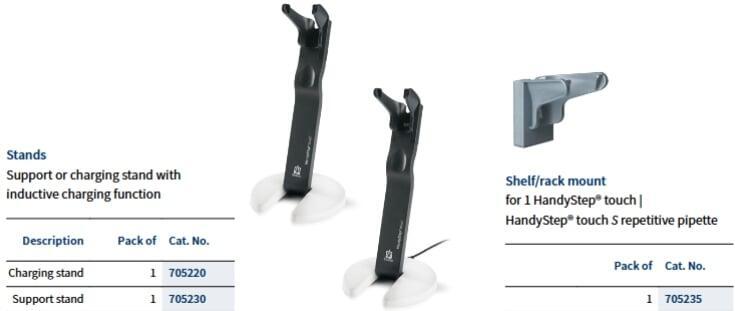

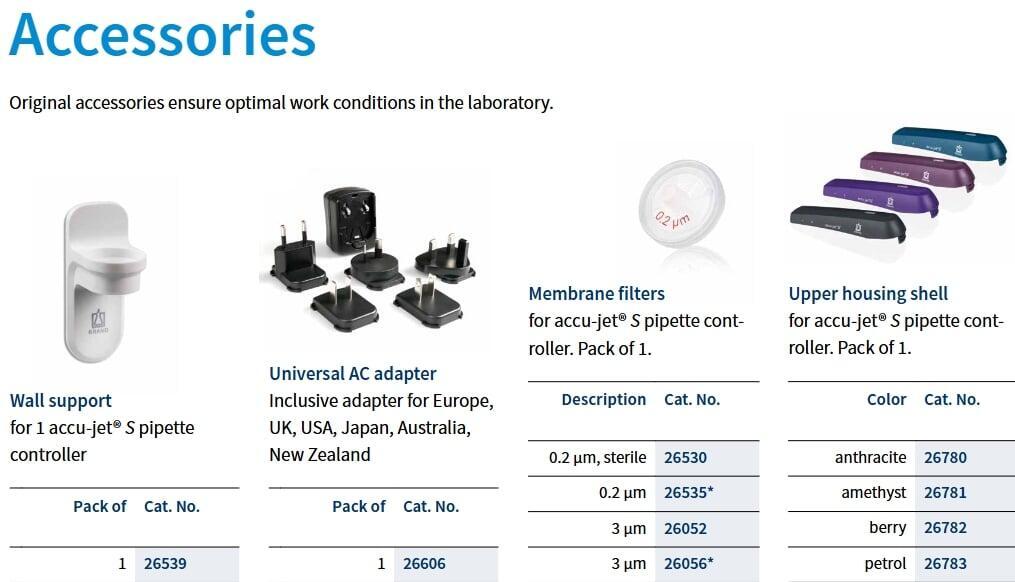

Accessories

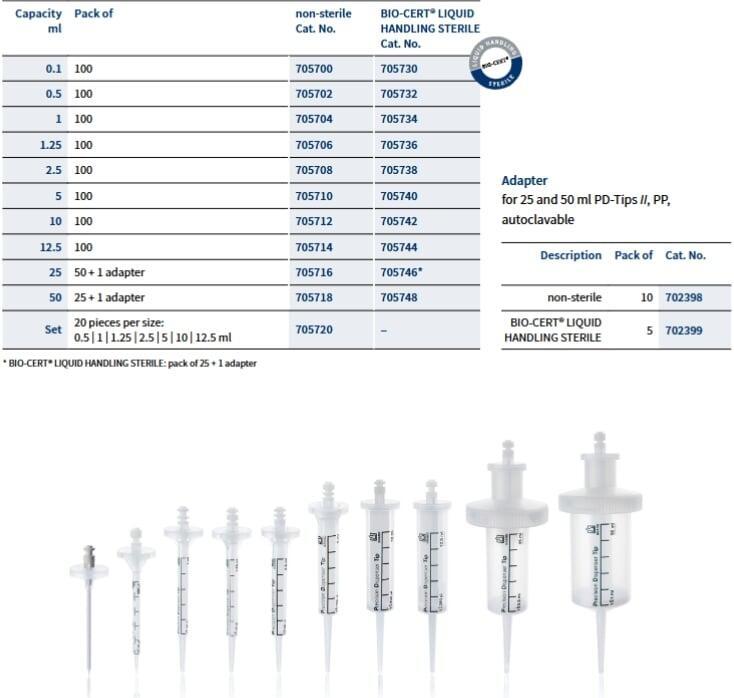

PD Tips ordering Information
Positive displacement pipettes:
Make: BRAND

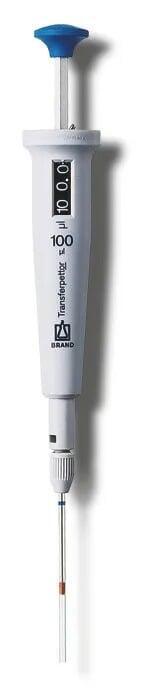

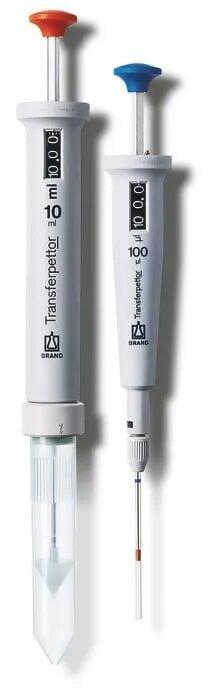

Model: Transferpettor Digital

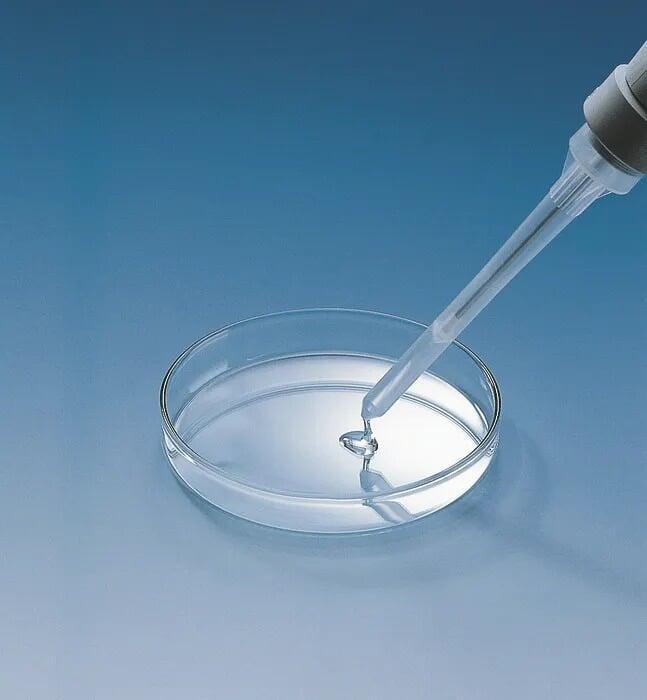

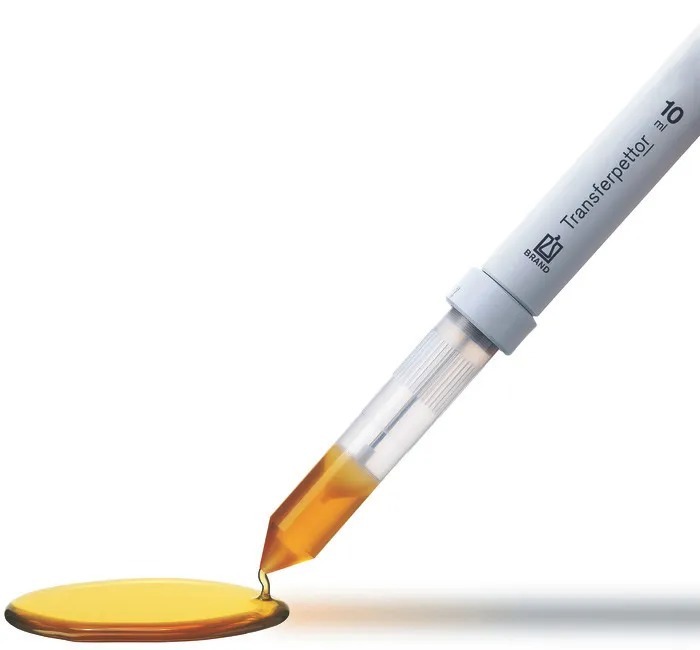

The Transferpettor is ideal for liquids when air displacement pipettes just won't work. Viscous, foaming, high vapor pressure: the Transferpettor can handle them all, with the precision and accuracy you expect from a BRAND pipette. This is the pipette for your most demanding pipetting operations.

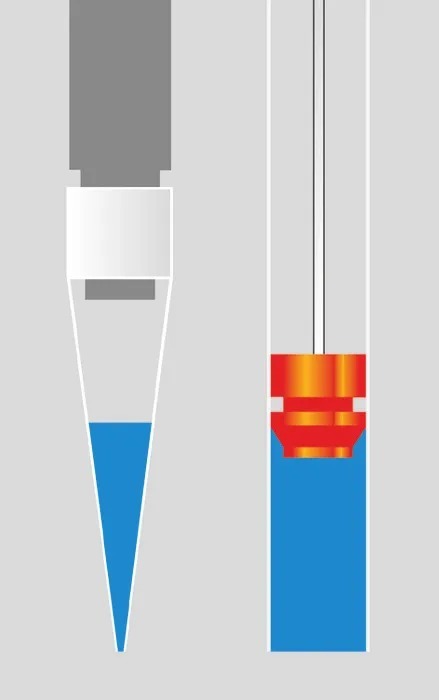

The Transferpettor operates on the positive displacement principle. In contrast with air displacement pipettes, the piston is in direct contact with the aspirated liquid. The tightly fitting piston always wipes the walls of the tips completely clean - literally to the last drop. Therefore providing reproducible results. There is no need to discard tips after each pipetting operation, since residual wetting is negligible.
Limitations of use:
Density up to 3.8 g/cm³
Vapor pressure up to 500 mbar
Kinematic viscosity up to: Nominal volume 1/ 2/ 5 µl: 6.000 mm² /s; nominal volume 10 µl: 20.000 mm² /s; nominal volume 25 µl: 50.000 mm² /s; nominal volume 50 µl: 100.000 mm² /s; nominal volume 100 µl: 140.000 mm² /s (Operating temperature: 15 - 40 °C (59 °F - 104 °F))
Volume range:
Key Features
Core design and principle:
Uses the positive displacement principle, where the piston is in direct contact with the liquid rather than separated by an air cushion.The tight-fitting piston wipes the capillary walls nearly dry, allowing dispensing “to the last drop” with very low residual wetting and good reproducibility.
Liquids it can handle:
Suitable for viscous media (e.g., concentrated protein solutions, oils, resins, fats) up to very high kinematic viscosities (tens of thousands of mm²/s depending on volume).Can accurately dispense high‑density liquids (e.g., glycerol, mercury, sulfuric acid) and high vapor pressure solvents (alcohols, ethers, hydrocarbons) without recalibration within specified limits.
Performance and volume range:
Available in multiple digital adjustable-volume models covering roughly 2.5 µL to 10 mL, with typical accuracy around 0.5–3% and CV around 0.2–0.8% depending on size.Designed to maintain precision even with liquids that cause serious errors in standard air‑displacement pipettes.
Tip and reusability features:
Uses special capillaries/caps (glass or PP, depending on volume) with a piston that can often be reused because residual wetting is minimal, reducing consumable use and sample waste.For applications where absolutely no carry‑over is tolerable (e.g., infectious or radioactive samples), manufacturers recommend switching to disposable‑tip air‑displacement models instead.
Typical applications:
Handling concentrated protein and enzyme solutions, detergents/surfactants such as Tween solutions, oils and greases, resins, and problematic organic solvents.Useful whenever standard air‑displacement pipettes show dripping, foaming, inaccurate volumes, or poor repeatability due to the liquid’s properties
Technical Specifications
| Catalog No. | Volume Range | Accuracy (±%) | Coefficient of Variation (%) |
| 701807 | 2.5 - 10 µl | 3 | 0.8 |
| 701812 | 5 - 25 µl | 2.4 | 0.5 |
| 701817 | 10 - 50 µl | 1.8 | 0.4 |
| 701822 | 20 - 100 µl | 1.5 | 0.4 |
| 702804 | 100 - 500 µl | 0.5 | 0.2 |
| 702806 | 200 - 1,000 µl | 0.5 | 0.2 |
| 702810 | 1,000 - 5,000 µl | 0.5 | 0.2 |
| 702812 | 2,000 - 10,000 µl | 0.5 | 0.2 |
Digital Burettes:
Make: BRAND

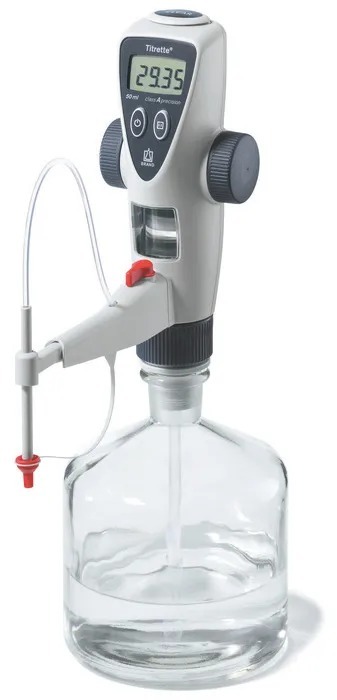

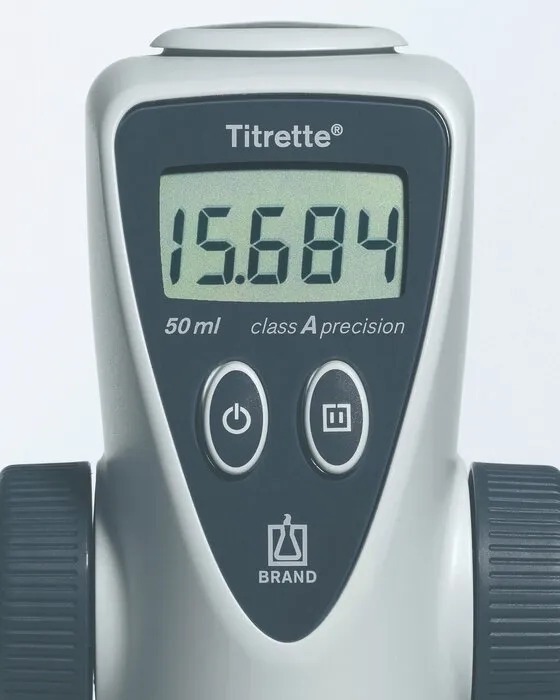

Model: Titrette

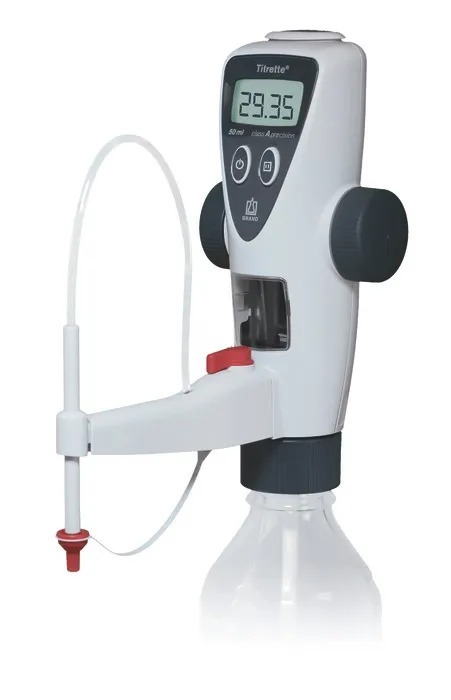

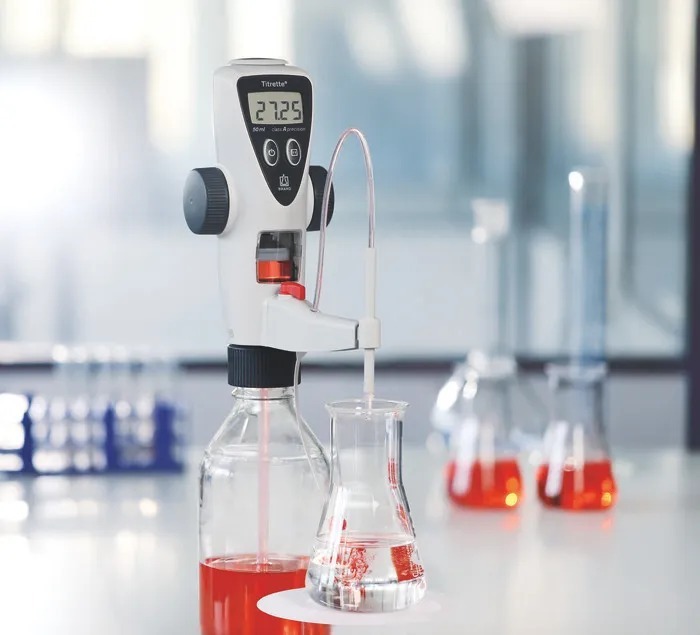

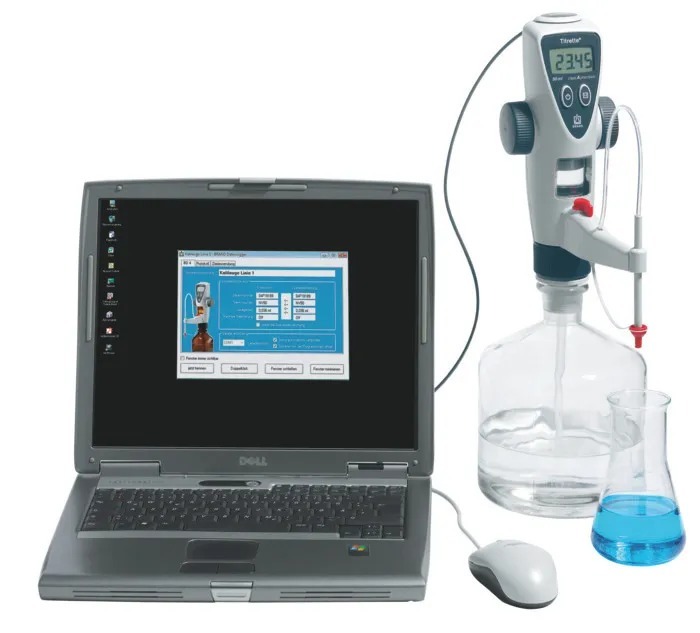

Titrette® is the first bottle-top burette to meet class A error limits for glass burettes. In addition, it stands out for easy titration, a compact design, excellent precision, an exchangeable dosing unit, and an optional PC interface. You can use the Titrette® to titrate quickly and reliably, even with restricted space and independent of available power connections - in the laboratory, in production, or in the field.
In detail:
The Titrette® burette incorporates a simple and effective design for bottle attachment.

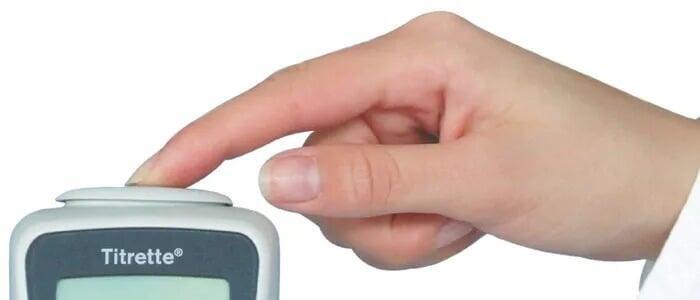

Separate buttons for on/off, pause, and CLEAR to delete the display and select function.
Non-slip hand wheels and a smooth-running precision gear set for fast or drip titration make handling reliable and especially simple.
Limitations of use:
Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Vapor pressure up to 500 mbar
Viscosity up to 500 mm² /s
Altitude: max. 3,000 m above sea level
Relative humidity: 20 % to 90%
Volume range:
Key Features
The key features of the Brand Titrette bottle-top burette include precise titration within Class A error limits, a compact and robust design, and ease of use with separate control buttons for on/off, pause, and clearing the display. It has a digital display for easy volume reading, smooth and fast filling with non-slip hand wheels and precision gearing for drop-wise dispensing, and the titrating tube can be adjusted horizontally and vertically for flexible positioning. The burette operates without needing a power connection, is lightweight, disassembles quickly for cleaning or maintenance, and supports an optional PC interface for data transfer. It also comes with a telescoping filling tube, various bottle adapters, and light shield inspection windows for use with light-sensitive reagents.
Precision and Ease of Use:
Meets Class A glass burette error limits for accuracy. Fingertip sensitivity with drop-wise titration. No need to switch between filling and titration modes; the device automatically detects the action. Large textured hand wheels and a smooth-running precision gear ensure easy and reliable operation.
Design and Flexibility:
Compact, lightweight, and robust design suitable for limited spaces without power connection. Adjustable titration tube position (horizontal and vertical) to accommodate different bottle sizes or magnetic stirrers. Telescoping filling tube allows use with different bottle heights.
Additional Functional Features:
Separate buttons for on/off, pause, and clear functions. Optional PC interface for direct data transfer. Easy calibration technology allows quick adjustments without tools. Supplied with performance certificate, battery-powered, and equipped with light protection windows for sensitive media.
Technical Specifications
| Catalog Number | Volume | Model Type | Resolution/Notes |
|---|---|---|---|
| 4760151 | 25 mL | Standard | 0.07% error at 20 mL, 18 µL |
| 4760161 | 50 mL | Standard | 0.06% error at 20 mL, 30 µL |
| 4760241 | 10 mL | RS232 | 0.1% error at 10 mL, 10 µL |
| 4760251 | 25 mL | RS232 | 0.07% error at 20 mL, 18 µL |
| 4760261 | 50 mL | RS232 | 0.06% error at 20 mL, 30 µL |
| 5334021 | 10 mL | Standard | 0.001 mL |
| 5334023 | 25 mL | Standard | 0.001 mL (0.01 mL above 20 mL) |
| 5334024 | 50 mL | Standard | 0.002 mL (0.01 mL above 20 mL) |
| 14-379-342 | 25 mL | Without Interface | Fisher Sci equivalent |
